4CH H.265+ 5MP Lite DVR 1080P Outdoor CCTV Home Security Camera System Kit

Save 21% Save 21%
Original price $379.99
Original price $379.99 - Original price $379.99
Original price $379.99
Current price $299.99
$299.99 - $299.99
Current price $299.99
13 in stock, ready to be shipped

1.24 hours of daily recording as the factory default setting, allowing device users to customize the recording schedule;

2. The day and night monitoring set is equipped with 4 fully high-definition wireless cameras, IP66 waterproof;

3. Equipped with various functions, such as night vision (up to 65 feet), real-time streaming, remote monitoring, and motion detection alerts;

4. Installation: Using automatic pairing technology, plug the camera and DVR power into a nearby socket, connect the DVR box to the monitor, and smoothly obtain clear and bright images during the day or night;

5. Remote monitoring and playback: The free application can be downloaded to remote viewing and playback recording (ensuring that the DVR is connected to the router through an Ethernet cable).

6.Support for wired  connections;

7.Support 2D/3D noise reduction , digital wide dynamic;


Signal system: XVI/AHD/TVI/CVI/CVBS
Effective pixels: PAL/NTSC: 1920 * 1080
Minimum illumination: Color: 0.1Lux @ (F1.2, AGC ON), 0Lux with IR
Black and white: 0.01Lux @ (F1.2, AGC ON), 0Lux with IR
Photosensitive resistor port: 1 photosensitive resistor interface, supporting the linkage of photosensitive resistor input signal and image, IR-CUT, infrared light
Shutter: 1/50 (1/60) seconds to 1/10000 seconds
Day and night function: supports IR-CUT mechanical switching
Lens parameters: C/CS interface, M12 lens optional
Video output: 1080P@25fps
Power supply: DC12V ± 10%
Working environment: temperature -10 ℃~60 ℃, humidity less than 90% (no condensation)
Size: 32mm * 32mm single board (compatible with 38 positioning holes)
Attention: Standard coaxial control, supporting coaxial upgrade, signal switching through tail wire short circuit/OSD menu
Screen display: 1/4 screen (taking coaxial input mode as an example, others depend on channel mode)
Monitoring quality: VGA (up to 1080P)/HDMI (up to 1080P)
Mobile detection: 192 (16 * 2) detection areas can be set per screen
Recording method: manual, alarm, dynamic detection, timed
Local playback: 2/4 channels
Video query: time point retrieval, calendar retrieval, event retrieval, channel retrieval
Video input interface: 4-way BNC
Video output interface: 1 channel VGA, 1 channel HDMI
Pan tilt control: supports multiple pan tilt protocols
USB interface: 2 USB interfaces

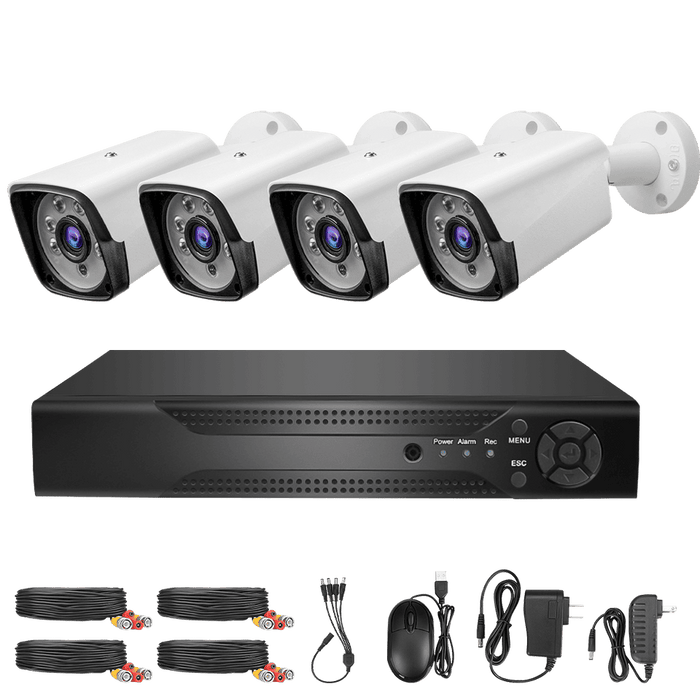

Package include:
4 * Camera
1 * DVR
4 * Camera BNC extension cable
1 * Mouse
1 * Video recorder power supply
1 * Camera power supply
1 * 4 in 1 DC power splitter line
