6 Dies 6 Ton Hydraulic Knockout Punch Driver Kit Hand Pump Hole Tool 11-gauge
Product Description:
- Complete Punch Tools - Hydraulic punch tool kit features 1pc 6-ton pump, 2pcs draw studs, 1 set of spacers and 6 sets of interchangeable dies & punches for conduit fitting size of 1/2", 3/4", 1", 1 1/4", 1 1/2" and 2", can drill different sizes holes on stainless steel, aluminum, steel, plastic, etc; 1/8” (11 gauge) max punching thickness for steel and 1/16” (14 gauge) for stainless steel, perfect to be used for different drilling projects
- Efficient Hydraulic Design - Hydraulic mechanism of the pump produces a strong force of 6T (59KN) for providing great punching accuracy and fast punching speed which is 10 times much faster than common wrenches, ideal for improving working efficiency; rotary “on/off” knob on the pump for quick releasing pressure, adding more safety
- 360 Degree Rotation - 360 Degrees rotatable punch head for meeting your punching needs, you can adjust it flexibly to use in narrow areas; plastic grip at the end of the long handle for labor saving and comfortable operation
- Sturdy Metal Construction - 40Cr steel dies and aluminum alloy pump body for ensuring high strength, sturdiness and durability, stable construction is suitable for heavy-duty and frequent jobs
- Portable & Wide Application - Blow-molded case with handle for convenient storage and keeping all accessories in place, portable for fast work; widely used on installing and repairing wire pipeline, signal lamp and instrument on construction sites, metallurgy, petrol, electronics, electrical appliance, chemical industry, ship and machinery, etc.
Specifications:
- Pump Dimension(LxWxH): 13 3/4” x 7 1/16” x 2 9/16” (35 x 18 x 6.5 cm)
- Extendable Handle Range: 2 3/8” to 8 11/16” (6 to 22 cm)
- Plastic Case Dimension(LxWxH): 16 1/8” x 9 13/16” x 4 5/16” (41 x 25 x 11 cm)
- 6 Punch Dies: 1/2"(22.5mm), 3/4"(28.3mm), 1"(34.6mm), 1 1/4"(43.2mm), 1 1/2"(49.6mm), 2"(61.5mm)
- Max Pressure: 6 ton
- Stroke: 7/8” (22 mm)
- Material: 45# Steel, Aluminum Alloy, 40Cr Steel
- Max Thickness for Steel: 1/8” (11 gauge)
- Max Thickness for Stainless Steel: 1/16” (14 gauge)
- Net Weight: 12.6 Lbs (5.7 kg)

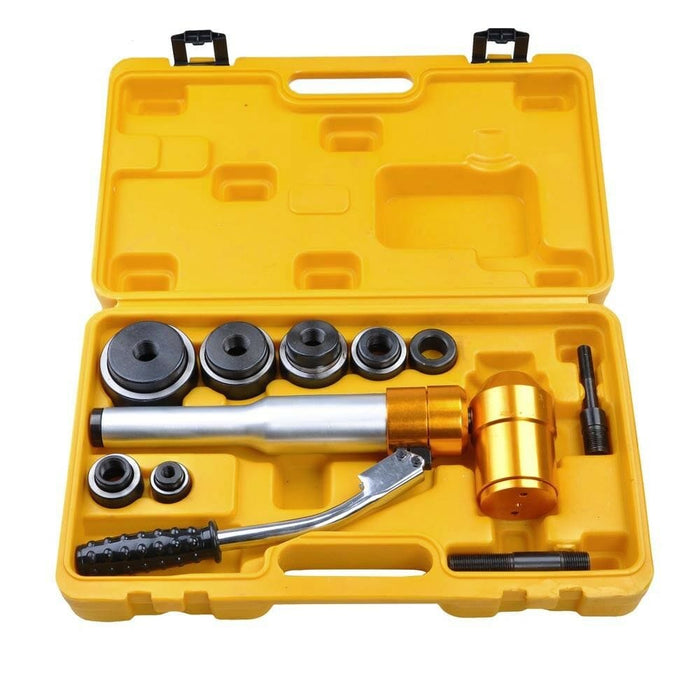

Package Contents:
- 1x 6-Ton Pump
- 6 Sets of Dies & Punches
- 2x Draw Studs
- 1 Set of Spacer
- 1x Plastic Carrying Case
- 1x Manual
